Gauge Valves

Download Gauge Valves Catalogue

Gauge Valves Gauge Valves

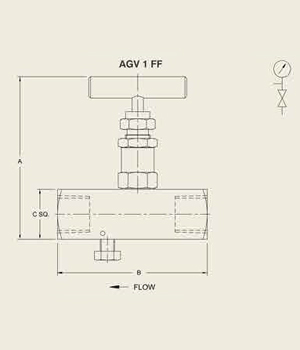

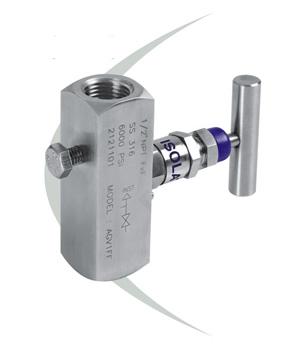

AGV 1 FF Guage Bleed Valve

These valves are designed for safe installations of Pressure gauges. The suitable model can be selected for isolation, calibration or drain purpose.

STANDARD SPECIFICATION:
End Connection : ½" NPT / G ½ / ½" BSPT
Maximum working pressure : 413 bar / 6000 PSI at 100°C
Material : 316 SS / 316L SS / 304 SS / Carbon steel
Gland Packing : PTFE / Graphite
WEIGHT : 0.530 kg
MOC in accordance with NACE MR0175 is available on request.
Monel, Inconel, Hastelloy, Duplex steel are also available on request.
SIZE
A
B
B SQ.
WEIGHT (kg)
1/4"
93
70
25
0.43
3/8"
93
70
25
0.43
1/2"
93
80
28
0.53


Gauge Valves Gauge Valves

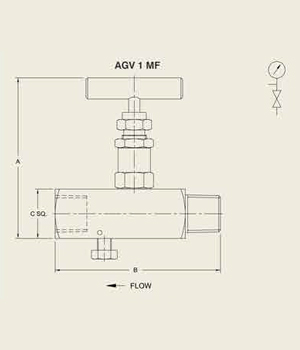

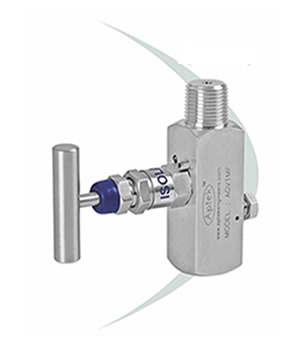

AGV 1 MF Guage Bleed Valve

These valves are designed for safe installations of Pressure gauges. The suitable model can be selected for isolation, calibration or drain purpose.

STANDARD SPECIFICATION:
WEIGHT : 0.60 kg
SIZE
A
B
B SQ.
WEIGHT (kg)
1/4"
93
75
25
0.50
3/8"
93
75
25
0.50
1/2"
93
94
28
0.60


Gauge Valves Gauge Valves

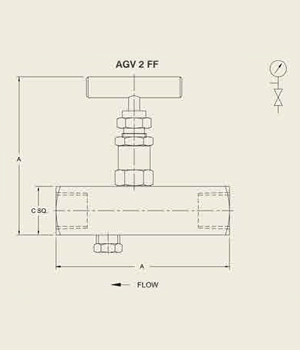

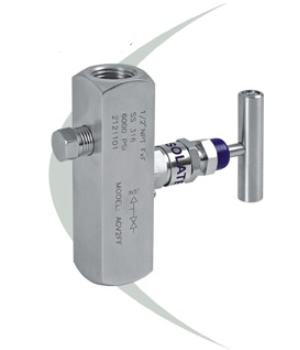

AGV 2 FF Gauge Vent Value

These valves are designed for safe installations of Pressure gauges. The suitable model can be selected for isolation, calibration or drain purpose.

STANDARD SPECIFICATION:
End Connection : ½" NPT / G ½ / ½" BSPT
Maximum working pressure : 413 bar / 6000 PSI at 100°C
Material : 316 SS / 316L SS / 304 SS / Carbon steel
Gland Packing : PTFE / Graphite
WEIGHT : 0.55 kg
MOC in accordance with NACE MR0175 is available on request.
Monel, Inconel, Hastelloy, Duplex steel are also available on request.
SIZE
A
B
B SQ.
WEIGHT (kg)
1/4"
93
80
25
0.45
3/8"
93
80
25
0.45
1/2"
95
90
28
0.55


Gauge Valves Gauge Valves

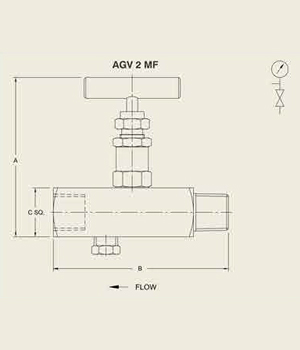

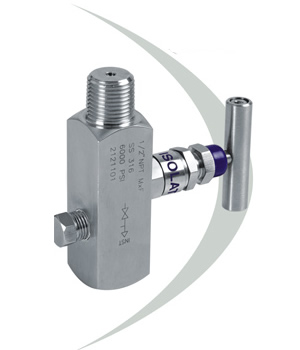

AGV 2 MF Gauge Vent Value

These valves are designed for safe installations of Pressure gauges. The suitable model can be selected for isolation, calibration or drain purpose.

STANDARD SPECIFICATION:
WEIGHT : 0.60 kg
SIZE
A
B
B SQ.
WEIGHT (kg)
1/4"
93
80
25
0.50
3/8"
93
80
25
0.50
1/2"
95
100
28
0.60


Gauge Valves Gauge Valves

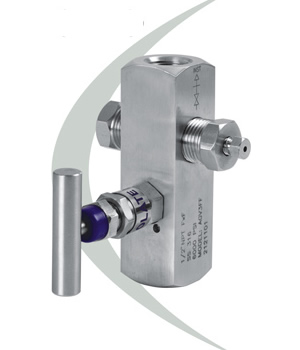

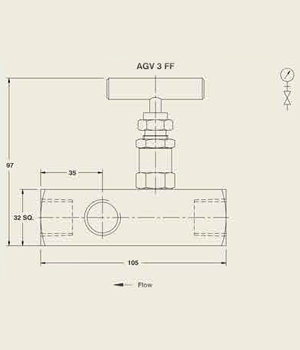

AGV 3 FF Multiport Gauge Valves

Multiport or gauge root values facilitate different positioning of Pressure gauge or Pressure switch without disturbing the main line. The blind plug & the vent plug are supplied with the valve.

STANDARD SPECIFICATION:
End Connection : NPT / BSPP / BSPT
Maximum working pressure : 413 bar / 6000 PSI at 100°C
Material : 316 SS / 316L SS / 304 SS / Carbon steel
Gland Packing : PTFE / Graphite
Inlet : ½" or ¾" NPT male or ½" NPT Female
Outlet : ½" NPT F x 3
Weight : 0.95 kg
MOC in accordance with NACE MR0175 is available on request.
Monel, Inconel, Hastelloy, Duplex steel are also available on request.


Gauge Valves Gauge Valves

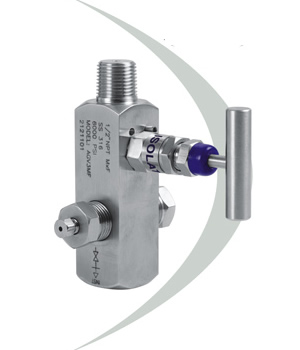

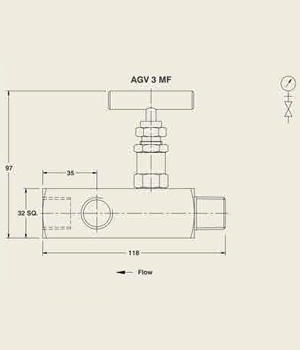

AGV 3 MF Multiport Gauge Valves

Multiport or gauge root values facilitate different positioning of Pressure gauge or Pressure switch without disturbing the main line. The blind plug & the vent plug are supplied with the valve.

STANDARD SPECIFICATION:
Weight : 0.95 kg


Gauge Valves Gauge Valves

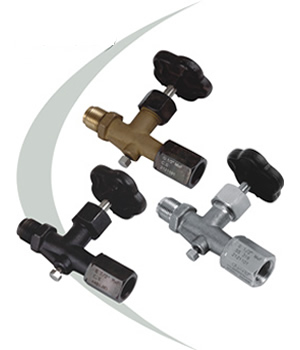

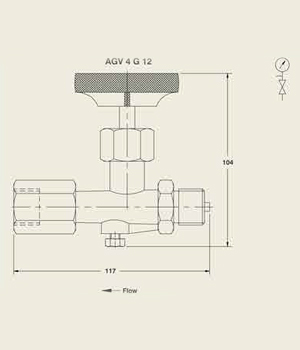

AGV 4 G 12 Forged Body Gauge Valve

These valves are specially designed in accordance with DIN 16270. The body is forged in union bonnet pattern. The G ½ connection provides swivel female outlet for suitable positioning of Pressure gauge. Bleed screw is provided for Vent.

STANDARD SPECIFICATION:
Maximum working pressure : 413 bar / 6000 PSI at 100°C
Material : 316 SS / 316L SS / 304 SS / Carbon steel / Brass
Gland Packing : PTFE / Graphite
Weight : 0.50 kg


Gauge Valves Gauge Valves

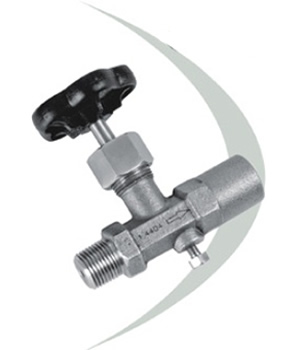

AGV 4 N 12 Forged Body Gauge Valve

These valves are specially designed in accordance with DIN 16270. The body is forged in union bonnet pattern. The G ½ connection provides swivel female outlet for suitable positioning of Pressure gauge. Bleed screw is provided for Vent.

STANDARD SPECIFICATION:
Weight : 0.50 kg
