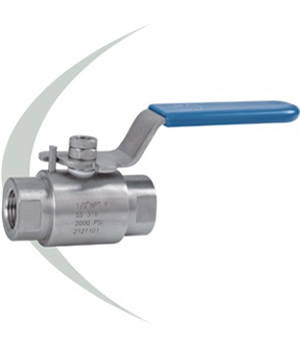

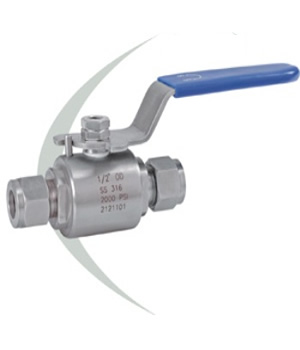

Aptek offers 2 types of ball valves for low pressure & high pressure applications.
This valves are safe, reliable & economical option for low pressure application.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : Screwed (NPT / BSPP / BSPT), Socket weld, Compression tube fitting ends | |
| Maximum working pressure | : 2000 PSI at 100°C | |
| Material | : CS, 316 SS / 316L SS / 304 SS | |
| Size | : ¼" to 1” | |
| Special materials are also available on request. | ||

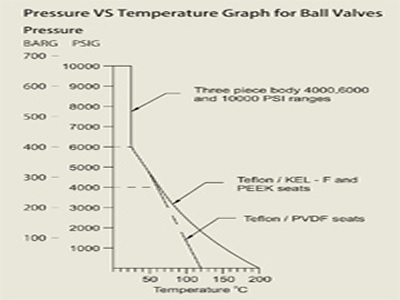

| See pressure temerature chart for high temperature applications. | ||
|

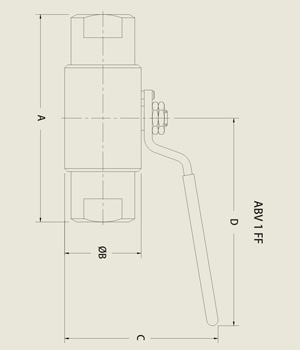

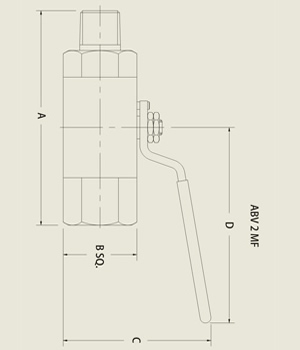

SIZE
|
A
|
ØB
|
C
|
D(kg.)
|
WEIGHT
|
|
1/4"
|
60
|
28
|
45
|
85
|
0.30
|
|
3/8"
|
65
|
32
|
50
|
85
|
0.40
|
|
1/2"
|
75
|
38
|
65
|
120
|
0.50
|
|
3/4"
|
85
|
42
|
75
|
135
|
0.75
|
|
1"
|
95
|
50
|
85
|
135
|
0.90
|
This valves are safe, reliable & economical option for low pressure application.
|

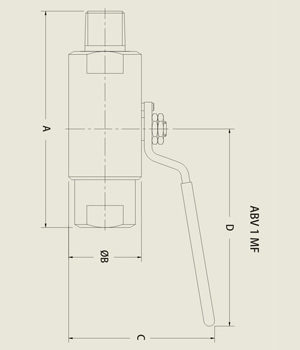

SIZE
|
A
|
ØB
|
C
|
D(kg.)
|
WEIGHT
|
|
1/4"
|
70
|
28
|
45
|
85
|
0.30
|
|
3/8"
|
75
|
32
|
50
|
85
|
0.40
|
|
1/2"
|
85
|
38
|
65
|
120
|
0.50
|
|
3/4"
|
95
|
42
|
75
|
135
|
0.75
|
|
1"
|
105
|
50
|
85
|
135
|
0.90
|
This valves are safe, reliable & economical option for low pressure application.
|

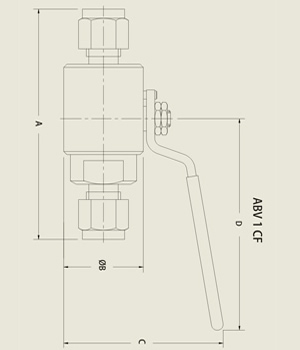

SIZE
|
A
|
ØB
|
C
|
D(kg.)
|
WEIGHT
|
|
1/4"
|
60
|
28
|
45
|
85
|
0.30
|
|
3/8"
|
65
|
32
|
50
|
85
|
0.40
|
|
1/2"
|
75
|
38
|
65
|
120
|
0.50
|
|
3/4"
|
85
|
42
|
75
|
135
|
0.75
|
|
1"
|
95
|
50
|
85
|
135
|
0.90
|

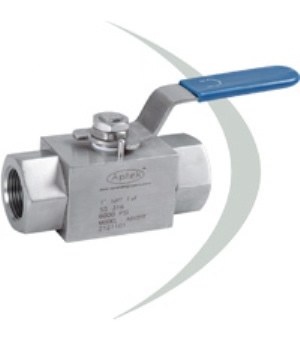

This range offers reliable option for the high pressure application. These valves are recommended for the use in Oil, Gas, Petrochemicals where the long life is required.
| STANDARD SPECIFICATION: | ||
|---|---|---|
| End Connection | : Screwed (NPT / BSPP / BSPT) | |
| Maximum working pressure | : 2000 PSI at 100°C | |
| Material | : CS, 316 SS / 316L SS / 304 SS | |
| Size | : ¼" to 1” | See pressure temerature chart for high temperature applications. |
|

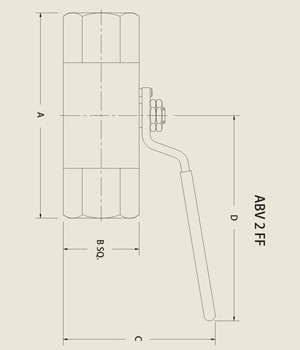

SIZE
|
A
|
ØB
|
C
|
D(kg.)
|
WEIGHT
|
|
1/4"
|
60
|
28
|
63
|
84
|
0.4
|
|
3/8"
|
60
|
32
|
63
|
84
|
0.4
|
|
1/2"
|
103
|
38
|
76
|
103
|
1.2
|
|
3/4"
|
123
|
50
|
89
|
103
|
2.0
|
|
1"
|
123
|
50
|
89
|
103
|
1.9
|
This range offers reliable option for the high pressure application. These valves are recommended for the use in Oil, Gas, Petrochemicals where the long life is required.
|
SIZE
|
A
|
ØB
|
C
|
D(kg.)
|
WEIGHT
|
|
1/4"
|
75
|
32
|
63
|
84
|
0.4
|
|
3/8"
|
76
|
32
|
63
|
84
|
0.4
|
|
1/2"
|
114
|
38
|
76
|
103
|
1.2
|
|
3/4"
|
141
|
50
|
89
|
103
|
2.0
|
|
1"
|
144
|
50
|
89
|
103
|
1.9
|
