Instrumentation Pipe Fittings

Download Inst-Pipe-Fittings Catalogue

Instrumentation Pipe Fittings Instrumentation Pipe Fittings

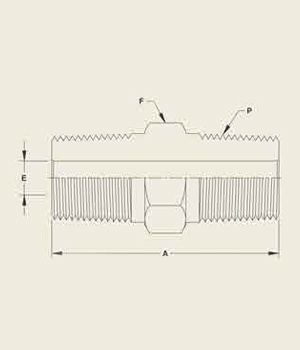

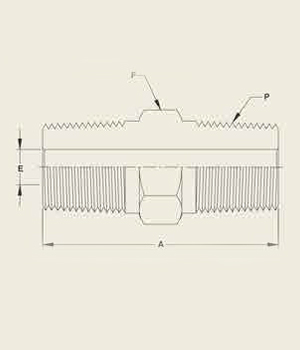

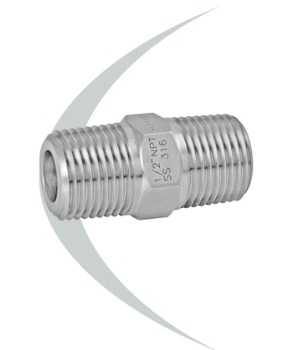

Hex Nipple


PART NO.
PIPE SIZE
DIMENSIONS
P
A
E
F
HN-16
1/16
25.7
3
10
HN-18
1/8
25.7
4.8
11
HN-14
1/4
35.6
7.1
14
HN-38
3/8
36.3
9.6
14
HN-12
1/2
46.7
11.9
22
HN-34
3/4
46.7
15.8
28
HN-01
1
58.9
22.4
36
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

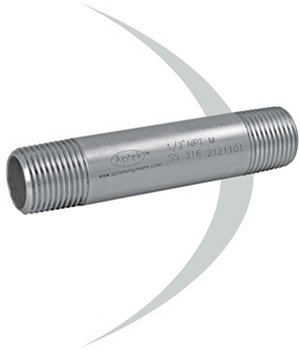

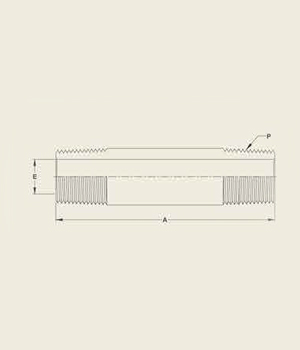

Long Pipe Nipple


PART NO.
PIPE SIZE
DIMENSIONS
P
1.5
2
2.5
3
4
E
HLN-18
1/8
1.5
2
2.5
3
4
6.80
HLN-14
1/4
1.5
2
2.5
3
4
9.24
HLN-38
3/8
1.5
2
2.5
3
4
12.52
HLN-12
1/2
1.5
2
2.5
3
4
15.80
HLN-34
3/4
1.5
2
2.5
3
4
20.43
HLN-01
1
-
2
2.5
3
4
26.65
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

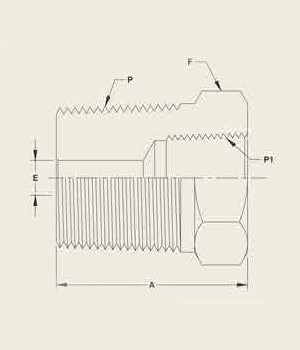

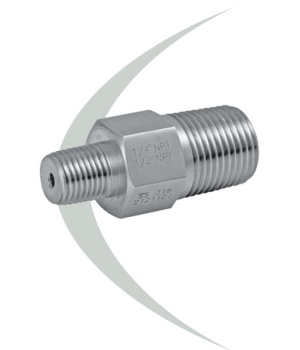

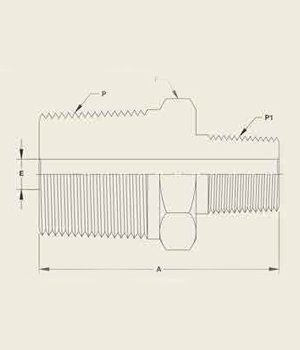

Hex Reducing Nipple


PART NO.
PIPE SIZE
DIMENSIONS
P
P1
A
E
F
HRN-1816
1/8
1/16
25.7
3.0
8
HRN-1418
1/4
1/8
31.0
4.8
14
HRN-3818
3/8
1/8
31.8
4.8
19
HRN-3814
3/8
1/4
36.3
7.1
19
HRN-1218
1/2
1/8
37.3
4.8
22
HRN-1214
1/2
1/4
41.9
7.1
22
HRN-1238
1/2
3/8
41.9
9.6
22
HRN-3814
3/4
1/4
41.9
7.1
28
HRN-3412
3/4
1/2
46.7
11.9
28
HRN-0112
1
1/2
54.1
11.9
36
HRN-0134
1
3/4
54.1
15.8
36
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

Close Nipple


PART NO.
PIPE SIZE
DIMENSIONS
P
A
E
F
CN-18
1/8
19.00
4.8
11
CN-14
1/4
28.40
7.1
14
CN-38
3/8
28.40
9.6
17
CN-12
1/2
38.10
11.9
22
CN-34
3/4
38.10
15.8
28
CN-01
1
47.70
22.4
36
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

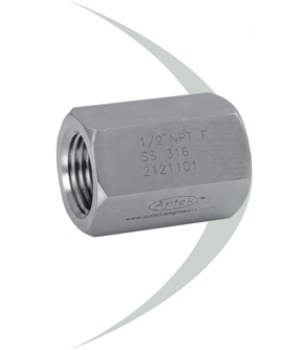

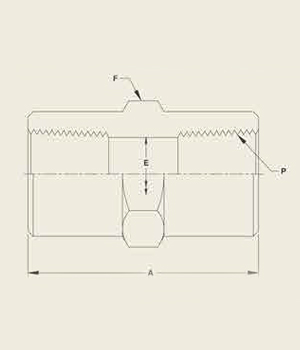

Coupling


PART NO.
PIPE SIZE
DIMENSIONS
P
A
E
F
CO-18
1/8
20.6
8.6
14
CO-14
1/4
30.2
11.4
19
CO-38
3/8
33.3
15.00
22
CO-12
1/2
39.6
18.5
28
CO-34
3/4
41.1
23.9
36
CO-01
1
50.8
29.7
42
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

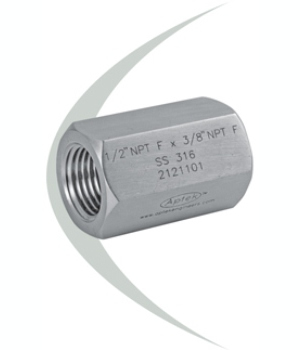

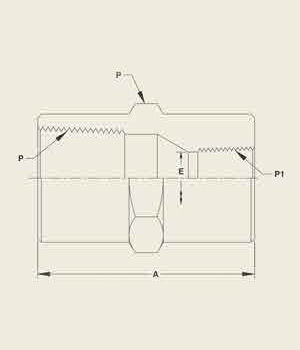

Reducing Coupling


PART NO.
PIPE SIZE
DIMENSIONS
P
P1
A
E
F
RCO-1418
1/4
1/8
31.0
8.6
19
RCO-3814
3/8
1/4
35.1
11.4
22
RCO-1218
1/2
1/8
39.6
8.6
28
RCO-1214
1/2
1/4
44.5
11.4
28
RCO-1238
1/2
3/8
45.2
15.0
28
RCO-3414
3/4
1/4
42.9
11.4
36
RCO-3412
3/4
1/2
52.3
18.5
36
RCO-0112
1
1/2
55.6
18.5
42
RCO-0134
1
3/4
57.2
23.9
42
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

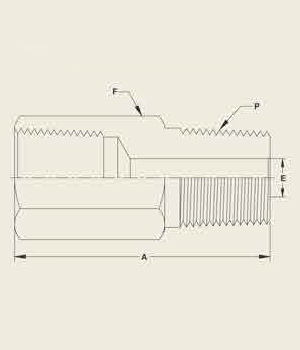

Adapter


PART NO.
PIPE SIZE
DIMENSIONS
P
A
E
F
AD-18
1/8
27.9
4.8
14
AD-14
1/4
35.6
7.1
19
AD-38
3/8
38.4
9.6
22
AD-12
1/2
49.3
11.9
28
AD-34
3/4
51.3
15.7
36
AD-01
1
57.9
22.1
42
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

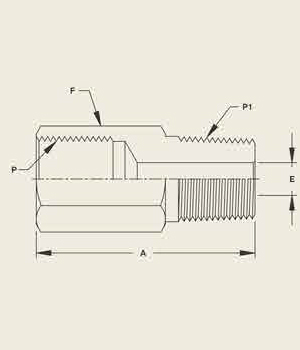

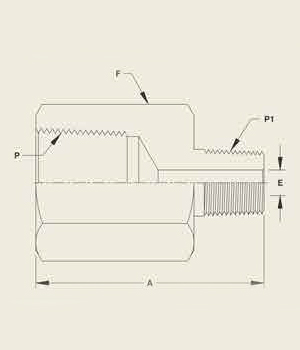

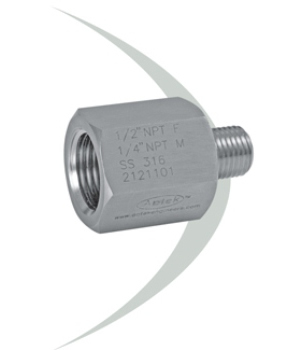

Reducing Adapter


PART NO.
PIPE SIZE
DIMENSIONS
P
P1
A
E
F
RAD-1816
1/8
1/16
26.1
3
14
RAD-1418
1/4
1/8
31.0
4.8
19
RAD-3818
3/8
1/8
33.6
4.8
22
RAD-3814
3/8
1/4
38.0
7.1
22
RAD-1218
1/2
1/8
40.1
4.8
28
RAD-1214
1/2
1/4
44.7
7.1
28
RAD-1238
1/2
3/8
44.5
9.5
28
RAD-3414
3/4
1/4
46.2
7.1
36
RAD-3438
3/4
3/8
46.2
9.5
36
RAD-3412
3/4
1/2
51.3
11.9
36
RAD-0114
1
1/4
49.8
7.1
42
RAD-0112
1
1/2
54.9
11.9
42
RAD-0134
1
3/4
55.1
15.7
42
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

Gauge Adapter


PART NO.
PIPE SIZE
DIMENSIONS
P
P1
A
E
F
GAD-14
1/4-19
1/4
27.7
3.0
19
GAD-38
3/8-19
3/8
32.0
5.0
22
GAD-12
1/2-14
1/2
41.9
7.1
28
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

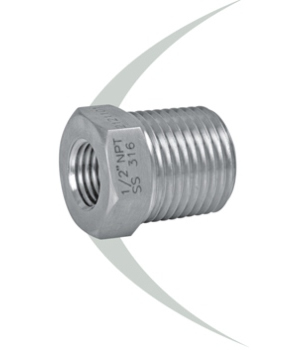

Reducing Bushing


PART NO.
PIPE SIZE
DIMENSIONS
P
P1
A
E
F
RB-1816
1/8
1/16
26.2
4.8
12
RB-1418
1/4
1/8
26.9
7.1
14
RB-3818
3/8
1/8
21.8
8.6
19
RB-3814
3/8
1/4
30.2
9.5
19
RB-1218
1/2
1/8
27.4
8.6
22
RB-1214
1/2
1/4
27.4
11.4
22
RB-1238
1/2
3/8
35.8
11.9
22
RB-3414
3/4
1/4
27.4
11.4
28
RB-3438
3/4
3/8
27.4
15.0
28
RB-3412
3/4
1/2
41.4
15.7
28
RB-0114
1
1/4
34.8
11.4
36
RB-0138
1
3/8
34.8
15.0
36
RB-0112
1
1/2
34.8
18.5
36
RB-0134
1
3/4
47.0
22.4
36
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

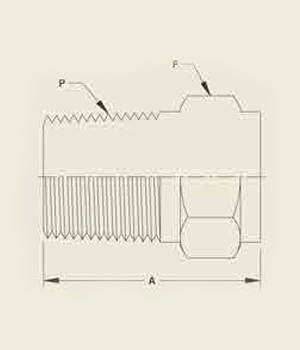

Pipe Plug


PART NO.
PIPE SIZE
DIMENSIONS
P
A
F
PP-16
1/16
19.0
8
PP-18
1/8
19.0
12
PP-14
1/4
25.4
14
PP-38
3/8
27.0
19
PP-12
1/2
33.3
22
PP-34
3/4
35.0
28
PP-01
1
42.8
36
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

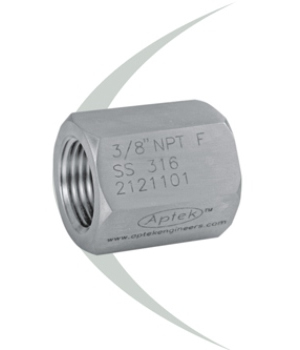

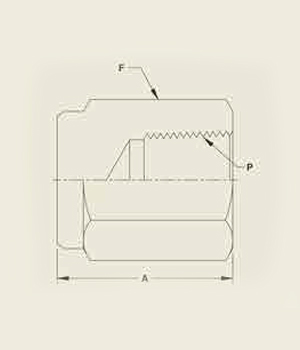

Pipe Cap


PART NO.
PIPE SIZE
DIMENSIONS
P
A
F
PC-18
1/8
19.1
14
PC-14
1/4
23.1
19
PC-38
3/8
26.2
22
PC-12
1/2
34.0
28
PC-34
3/4
36.6
33
PC-01
1
41.1
42
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

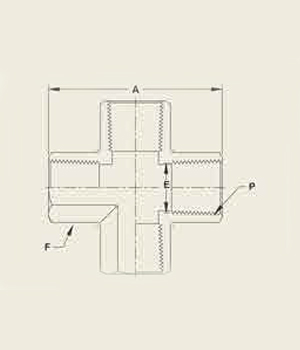

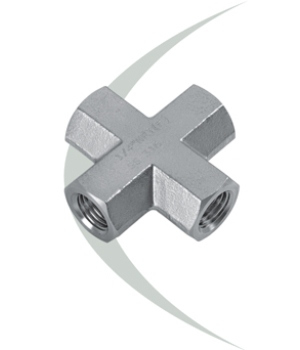

Cross


PART NO.
PIPE SIZE
DIMENSIONS
P
A
B
E
CR-18
1/8
52.8
8.6
14
CR-14
1/4
59.4
11.4
19
CR-38
3/8
72.2
15.0
22
CR-12
1/2
79.2
18.5
28
CR-34
3/4
97.6
23.9
36
CR-01
1
97.0
29.7
42
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

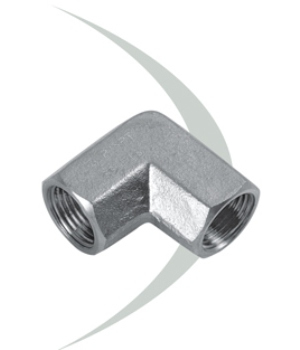

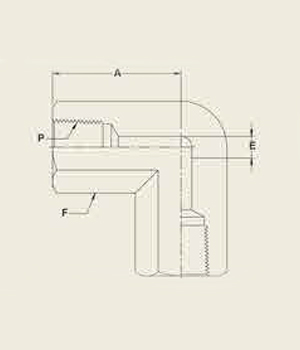

Female Elbow


PART NO.
PIPE SIZE
DIMENSIONS
P
A
E
F
FE-18
1/8
26.4
8.6
14
FE-14
1/4
30.0
11.4
19
FE-38
3/8
36.0
15.0
22
FE-12
1/2
39.6
18.5
28
FE-34
3/4
48.8
23.9
36
FE-01
1
48.5
29.7
42
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

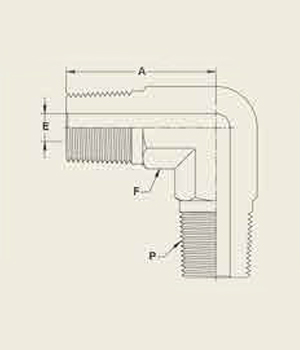

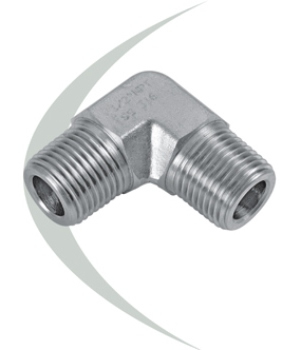

Male Elbow


PART NO.
PIPE SIZE
DIMENSIONS
P
A
E
F
ME-18
1/8
22.4
4.8
12
ME-14
1/4
26.6
7.1
14
ME-38
3/8
29.7
9.6
19
ME-12
1/2
36.8
11.9
22
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

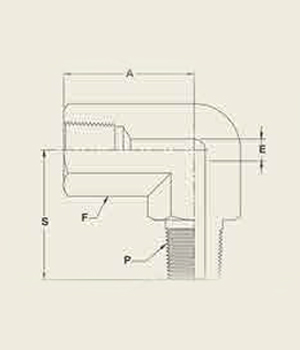

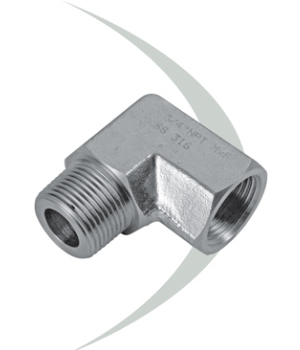

Street Elbow


PART NO.
PIPE SIZE
DIMENSIONS
P
A
E
F
S
SE-16
1/16
21.8
3.1
7/16
22.3
SE-18
1/8
26.4
4.8
14
22
SE-14
1/4
29.7
7.1
19
29.7
SE-38
3/8
36.0
9.6
22
32
SE-12
1/2
39.6
11.9
28
39.6
SE-34
3/4
48.8
15.8
35
42.4
SE-01
1
48.5
22.4
42
49.2
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

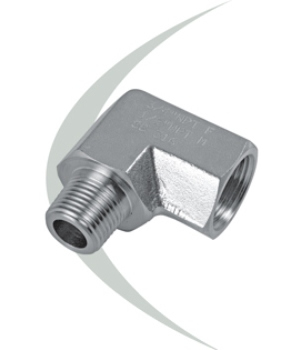

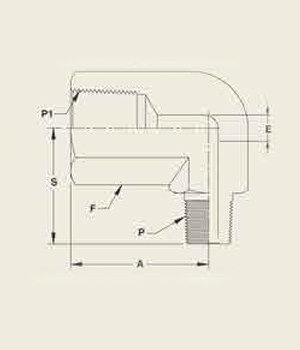

Reducing Street Elbow


PART NO.
PIPE SIZE
DIMENSIONS
P
P1
A
E
F
S
RSE-1418
1/4
1/8
29.7
4.8
14
25.4
RSE-3814
3/8
1/4
36.0
7.1
19
32.0
RSE-1214
1/2
1/4
39.6
7.1
22
35.0
RSE-1238
1/2
3/8
39.6
9.0
22
35.0
RSE-3412
3/4
1/2
40.3
11.9
27
42.4
RSE-0112
1
1/2
48.5
11.9
36
49.2
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

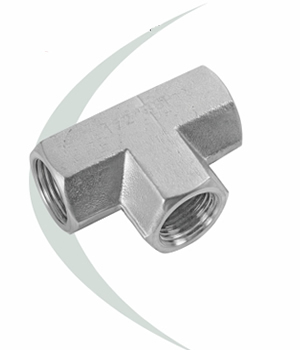

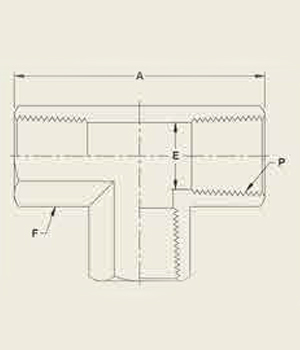

Female Tee


PART NO.
PIPE SIZE
DIMENSIONS
P
A
E
F
FT-18
1/8
40.5
8.6
15
FT-14
1/4
48.5
11.4
20
FT-38
3/8
53.0
13.8
24
FT-12
1/2
59.5
17.45
28
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

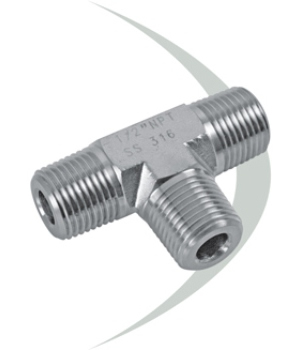

Male Tee


PART NO.
PIPE SIZE
DIMENSIONS
P
A
E
F
MT-18
1/8
40.5
4.8
12
MT-14
1/4
48.5
7.1
14
MT-38
3/8
59.5
9.6
19
MT-12
1/2
66.0
11.6
22
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

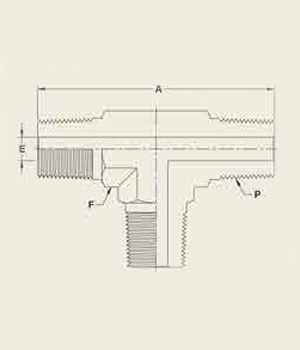

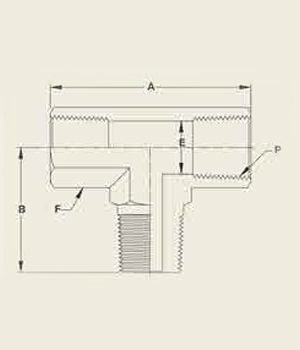

Branch Tee


PART NO.
PIPE SIZE
DIMENSIONS
P
A
B
E
F
BT-18
1/8
40.5
19.9
4.8
14
BT-14
1/4
44.5
27.5
7.1
19
BT-38
3/8
52.0
31.0
9.6
22
BT-12
1/2
62.5
37.4
11.6
28
Get Free Quote


Instrumentation Pipe Fittings Instrumentation Pipe Fittings

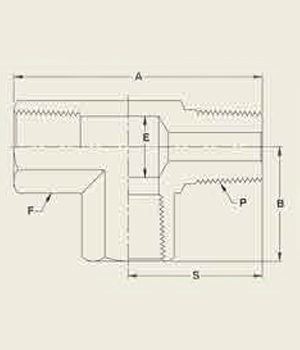

Street Tee


PART NO.
PIPE SIZE
DIMENSIONS
P
A
B
E
F
S
ST-18
1/8
39.6
16.8
4.8
14
22.0
ST-14
1/4
55.4
22.4
7.1
19
29.7
ST-38
3/8
62.0
25.9
9.6
22
32.0
ST-12
1/2
74.7
31.2
11.6
28
39.6
Get Free Quote
